| Cutting Width Minimum (CWN) | 3.5 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Maximum (CWX) | 4.49 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 82 mm |
| Overall Length (OAL) | 35.65 mm | Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 41 mm | Measurement Type | Metric |
| Overall Height (OAH) | 42 mm | Insert Seat Size Code (SSC) | 4 |
| Application | | External grooving | Parting off | | Tool Assembly Length (LTA) | 35.65 mm |
| Body Material | Steel | Unit | M |
Product Features

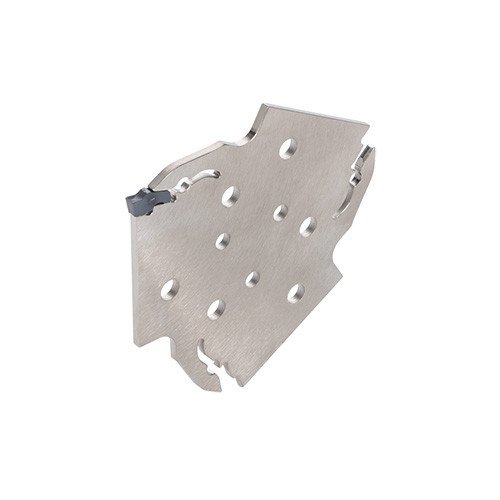

| Family Description | Parting-off and external grooving blade | FamilyName | QSG |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Parting Off Indexable Holders
FamilyName
QSG
BrandName
Tungaloy
