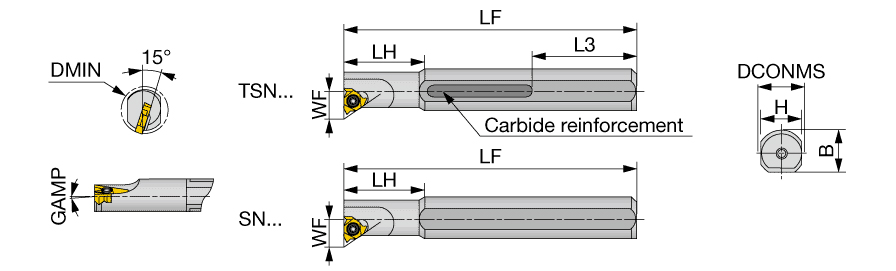

| Connection Diameter Machine Side (DCONMS) | 20 mm | Application | | Internal Threading | |
| Minimum Bore Diameter (DMIN) | 24 mm | Functional Width (WF) | 13.9 mm |
| Head Length (LH) | 50 mm | Master Insert Identification (MIID) | 22ILN60 |
| Overall Length (OAL) | 180 mm | Body Material | Steel |
| Shank Height (H) | 18 mm | Tool Type | Internal Indexable Threading Tools |
| Shank Width (B) | 19 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Unit | M |
Product Features

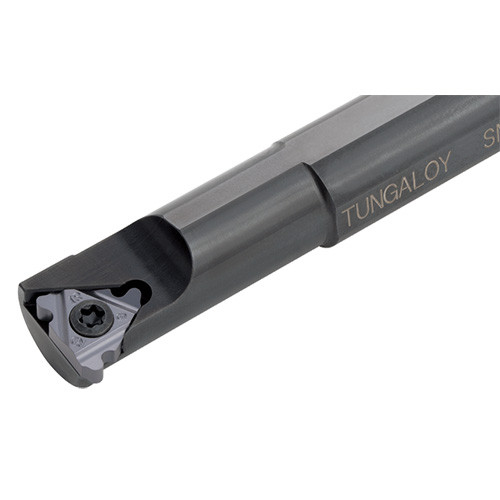

| Family Description | Screw-on internal threading toolholder | FamilyName | SNR/L |
| Remarks | Use right hand toolholders (R) with right hand inserts (R); and left hand toolholders (L) with left hand inserts (L). | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.4370
Name
Laydown Threading Indexable Holders
FamilyName
SNR/L
BrandName
Tungaloy
