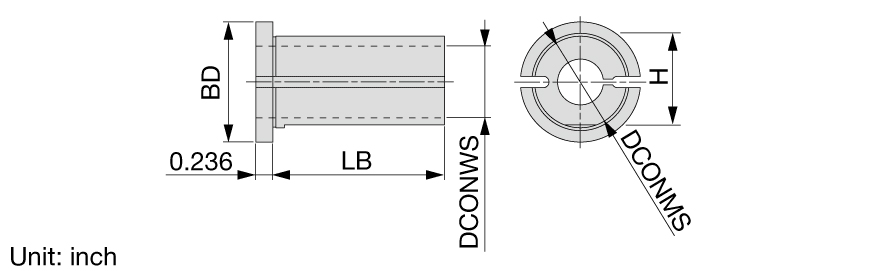

| Connection Diameter Machine Side (DCONMS) | 2-1/2″ | Application | | Accessories | |
| Connection Diameter Workpiece Side (DCONWS) | 1-1/4″ | Measurement Type | Inch |
| Body Diameter (BD) | 2.756″ | Body Material | Steel |
| Overall Length (OAL) | 6.142″ | Unit | I |
Product Features

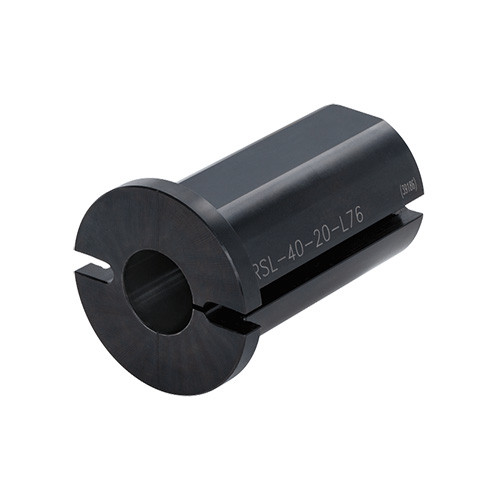

| Family Description | Split sleeve for anti-vibration bar | FamilyName | RSL |

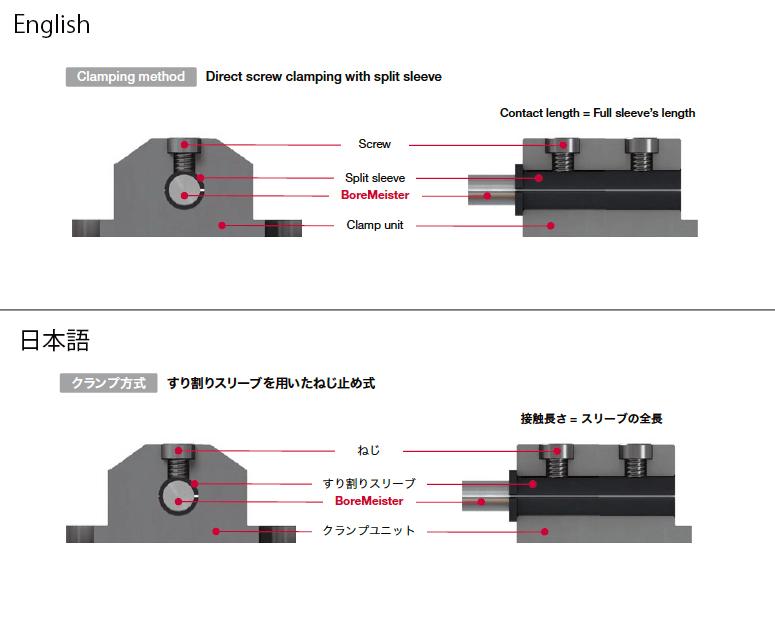

| Remarks | Note: When assembling a BoreMeister in a split sleeve, be aware that, depending on the clamp unit, the protruding bar end of the BoreMeister may interfere with the machine. | BrandName | Tungaloy |
| COO | SOUTH KOREA |
Shipping Info
Weight per item
0.0000
Name
Milling Chuck Sleeves
FamilyName
RSL
BrandName
Tungaloy
