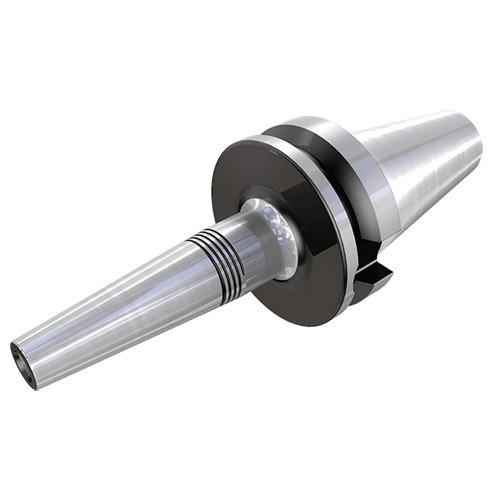

BT30FCSRK12X50
Thermal shrinking holder with BT MAS-403 face contact AD tapered shank, for carbide shanks.

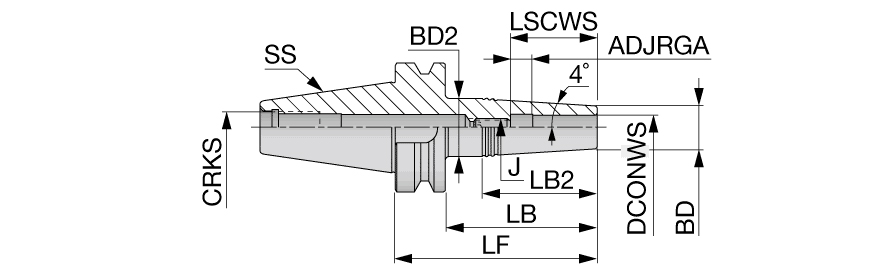

| Connection Diameter Workpiece Side (DCONWS) | 12 mm | Shank Type | Round |
| Shank Size (SS) | 30. | Application | | Tapered shape interface | |
| Body Length (LB) | 50 mm | Thread Designation Inside (THID) | M10 |
| Body Length_2 (LB_2) | 42.7 mm | Measurement Type | Metric |
| Body Diameter (BD) | 20.03 mm | Tool Type | BT |
| Body Diameter_2 (BD_2) | 26 mm | Body Material | Steel |
| Overall Length (OAL) | 72 mm | Unit | M |
Product Features
| Family Description | Thermal shrinking holder with BT MAS-403 face contact AD tapered shank, for carbide shanks. | FamilyName | BT-FC-SRK |
| Remarks | Please use an induction heating unit for SRKIN holder. Applicable for 10 MPa coolant. | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0000
Name
Shrink Fit Holders
FamilyName
BT-FC-SRK
BrandName
Tungaloy
