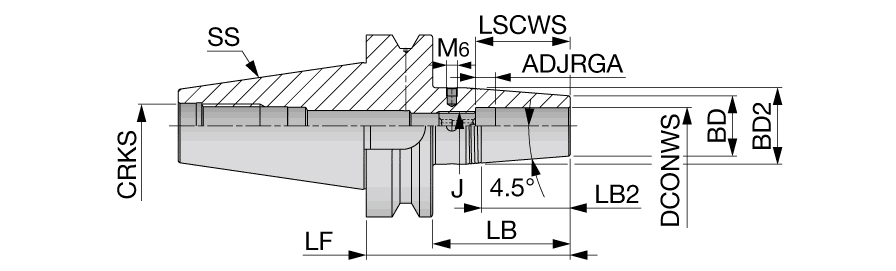

| Connection Diameter Workpiece Side (DCONWS) | 14 mm | Shank Type | Round |
| Shank Size (SS) | 40. | Application | | Tapered shape interface | |
| Body Length (LB) | 64 mm | Thread Designation Inside (THID) | M10 |
| Body Length_2 (LB_2) | 44.5 mm | Measurement Type | Metric |
| Body Diameter (BD) | 27 mm | Tool Type | BT |
| Body Diameter_2 (BD_2) | 34 mm | Body Material | Steel |
| Overall Length (OAL) | 90 mm | Unit | M |
Product Features

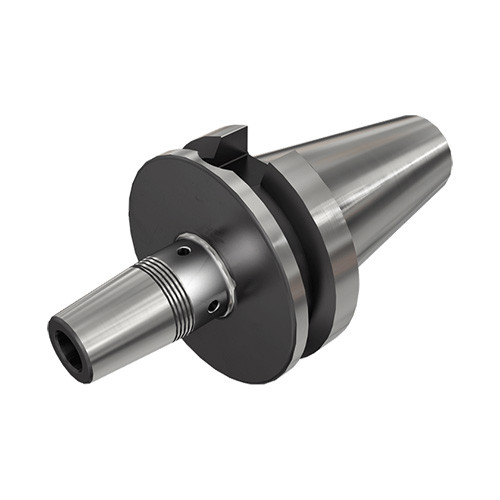

| Family Description | Thermal shrinking holder with BT MAS-403 face contact AD tapered shank, for carbide, HSS and steel shanks. | FamilyName | BT-FC-SRKIN |
| Remarks | Please use an induction heating unit for SRKIN holder. Applicable for 10 MPa coolant | BrandName | Tungaloy |
| COO | ITALY |
Shipping Info
Weight per item
0.0000
Name
Shrink Fit Holders
FamilyName
BT-FC-SRKIN
BrandName
Tungaloy
