DIN6987140EM20X63

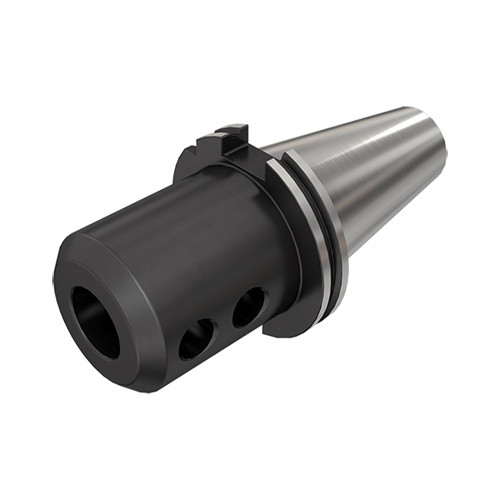

Screw locking endmill holders with DIN69871 shank

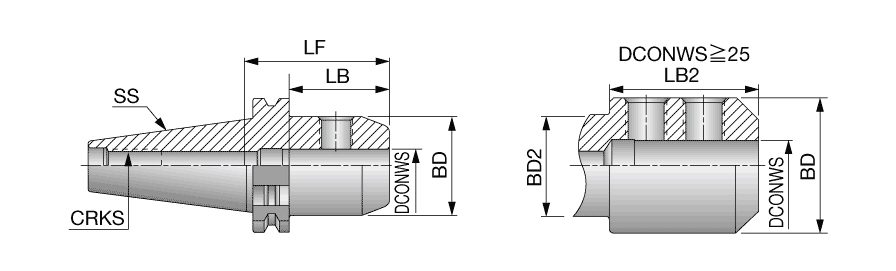

| Shank Type | Weldon | Connection Retention Knob Thread Size (CRKS) | M16 |
| Connection Diameter Workpiece Side (DCONWS) | 20 mm | Shank Size (SS) | 40. |
| Body Diameter (BD) | 52 mm | Tool Type | DIN 69871 |
| Body Diameter_2 (BD_2) | 49 mm | Body Length (LB) | 43.9 mm |
| Overall Length (OAL) | 63 mm | Body Length_2 (LB_2) | 28.5 mm |
| Application | | Tapered shape interface | | Body Material | Steel |
| Measurement Type | Metric | Unit | M |
Product Features
| Family Description | Screw locking endmill holders with DIN69871 shank | FamilyName | DIN69871-EM (endmill holder) |
| Remarks | Add B for coolant through the flange. | BrandName | Tungaloy |
| COO | ITALY |
Shipping Info
Weight per item
1.3540
Name
End Mill Holders
FamilyName
DIN69871-EM (endmill holder)
BrandName
Tungaloy
