ADJHSKA63D70ER32

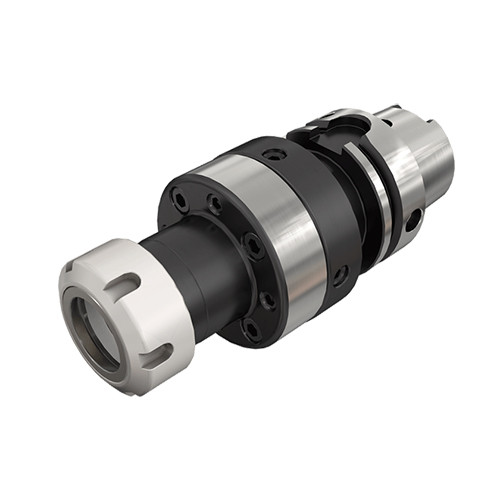

ER Collet Chucks with Center Alignment for HSK-A Shanks
| Shank Size (SS) | HSK A 63 | Functional Length (LF) | 134.5 mm |
| Connection Size (CSI) | ER32 | Application | | Face contact interface | |
| Body Diameter (BD) | 50 mm | Tool Type | HSK |
| Body Diameter_3 (BD_3) | 46 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Body Length (LB) | 108.5 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Body Length_2 (LB_2) | 92.5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Body Material | Steel |
| Shank Length (LS) | 32 mm | Unit | M |
Product Features
| Family Description | ER Collet Chucks with Center Alignment for HSK-A Shanks | FamilyName | ADJ HSK A-ER (collet chuck) |
| COO | ISRAEL | BrandName | Tungaloy |
Shipping Info
Weight per item
2.3240
Name
Collet Chucks
FamilyName
ADJ HSK A-ER (collet chuck)
BrandName
Tungaloy
