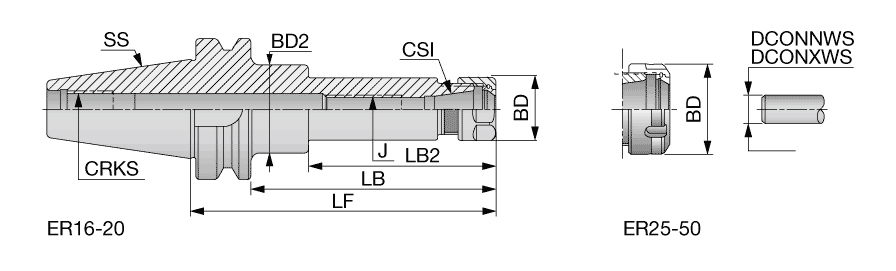

| Shank Size (SS) | BT50 | Tool Type | BT |
| Connection Size (CSI) | ER50 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 10 mm |
| Body Diameter (BD) | 78 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 34 mm |
| Body Length (LB) | 62 mm | Measurement Type | Metric |
| Shank Length (LS) | 101.8 mm | Body Material | Steel |
| Functional Length (LF) | 100 mm | Unit | M |
| Application | | Tapered shape interface | |
Product Features

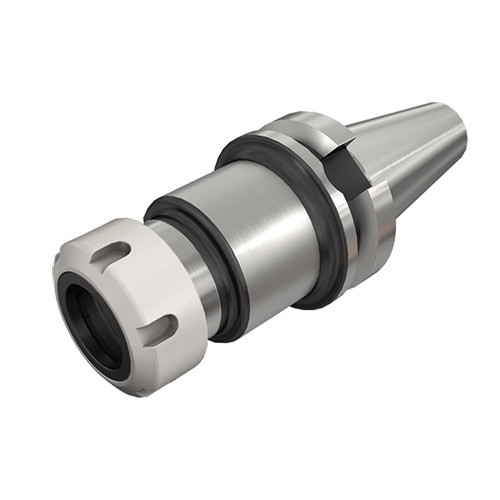

| Family Description | ER collet chucks with BT shank | FamilyName | BT-ER collet chuck |
| Remarks | Add B for coolant through the flange. Wrench is not included. | BrandName | Tungaloy |
| COO | ITALY |
Shipping Info
Weight per item
4.2800
Name
Collet Chucks
FamilyName
BT-ER collet chuck
BrandName
Tungaloy
