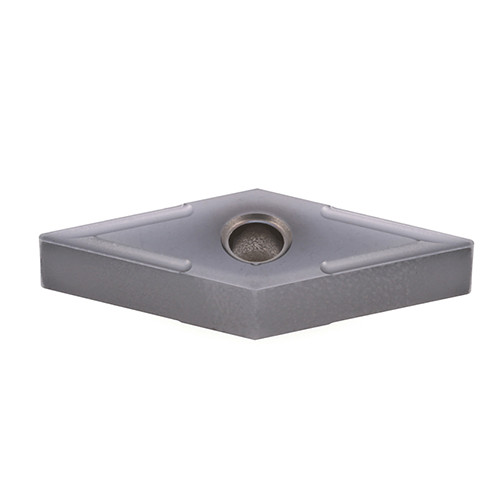

VNMG160404T00525AM1 QM3
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Cutting Edge Material | Carbide |
| Application | | Inserts for turning & grooving | | Coating | TiCN |

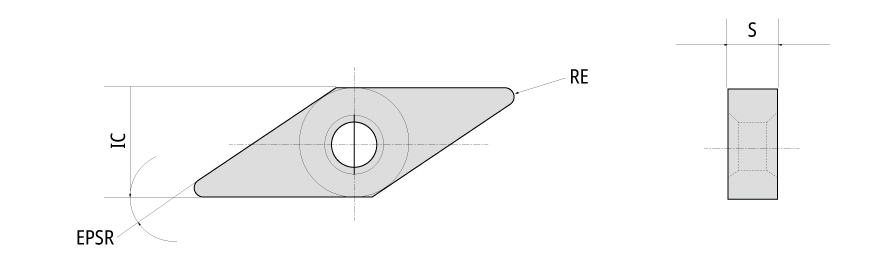

| Corner Radius (RE) | 0.4 mm | Grade | QM3 |
| Insert Thickness (S) | 4.76 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.525 mm | Body Material | Carbide |
| Insert Included Angle (EPSR) | 35 Degrees | Unit | M |
Product Features
| COO | Japan | BrandName | NTK Cutting Tools |
| FamilyName | VN.G type insert |
Shipping Info
Weight per item
0.0102
Name
Turning Indexable Inserts
FamilyName
VN.G type insert
BrandName
NTK Cutting Tools
