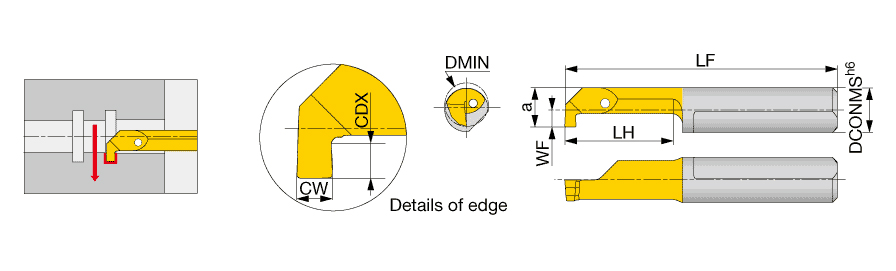

| Connection Diameter Machine Side (DCONMS) | 7 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Minimum Bore Diameter (DMIN) | 6.8 mm | Front End Width (a) | 6.2 mm |
| Functional Length (LF) | 45 mm | Functional Width (WF) | 2.7 mm |
| Head Length (LH) | 29 mm | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | Carbide |
| Coating | TiAlN | Tool Type | Solid, Turning & Grooving |
| Grade | SH730 | Measurement Type | Metric |
| Application | | Internal grooving | | Unit | M |
Product Features
| Family Description | Solid boring bars for internal grooving | FamilyName | JBGR/L |
| Remarks | Corner radius is less than 0.1 mm. | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0170
Name
Solid Boring Bars
FamilyName
JBGR/L
BrandName
Tungaloy
