JCTEL1616X2T16-CHP

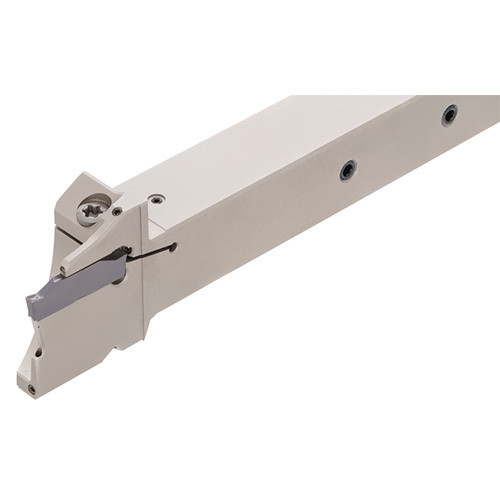

External grooving & parting toolholder with high pressure coolant channels, for swiss lathes. Compatible to the direct internal coolant supply system without the use of external coolant hose.

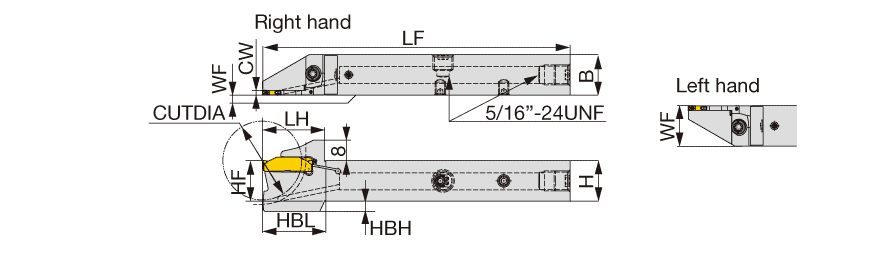

| Cutting Width Minimum (CWN) | 1.5 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 2.49 mm | Application | | External grooving | Parting off | |
| Shank Height (H) | 16 mm | Body Material | Steel |
| Shank Width (B) | 16 mm | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 16 mm | Measurement Type | Metric |
| Functional Length (LF) | 120 mm | Unit | M |
| Head Length (LH) | 24.7 mm |
Product Features
| Family Description | External grooving & parting toolholder with high pressure coolant channels, for swiss lathes. Compatible to the direct internal coolant supply system without the use of external coolant hose. | FamilyName | JCTER/L-CHP |
| Remarks | Torque: Recommended torque (Nm) for clamping | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.2540
Name
Groove/Turn Indexable Holders
FamilyName
JCTER/L-CHP
BrandName
Tungaloy
