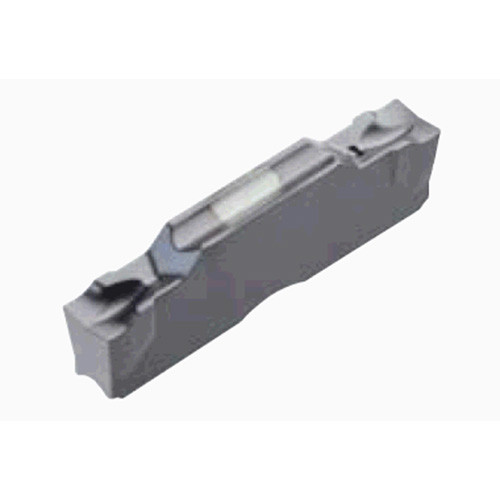

‎DGS1.4-016 AH7025

Double-ended inserts with low cutting force chipbreaker, for external grooving & parting, tolerance of insert width +-0.05mm

Item # TUN6774804

Brand: Tungaloy

Mfr#: 6774804

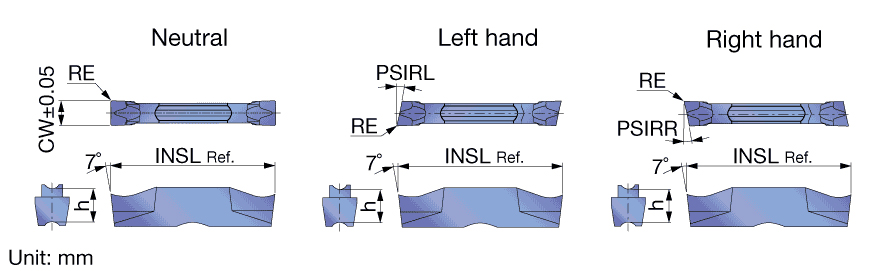

Cutting Width (CW)	1.4 mm	Applicable Material	\| Steel \| Stainless Steel \| Super-Alloys / Titanium \|
Corner Radius (RE)	0.16 mm	Cutting Edge Angle Major Left Hand (PSIRL)	0 Degrees
Insert Length (INSL)	16 mm	Tool Type	Face Turn-Groove Inserts
Cutting Edge Material	Carbide	Work Piece Parting Diameter Maximum (CUTDIA)	28 mm
Coating	TiAlN	Measurement Type	Metric
Grade	AH7025	Body Material	Carbide
Application	\| Inserts \|	Unit	M

Product Features

Family Description	Double-ended inserts with low cutting force chipbreaker, for external grooving & parting, tolerance of insert width +-0.05mm	FamilyName	DGS

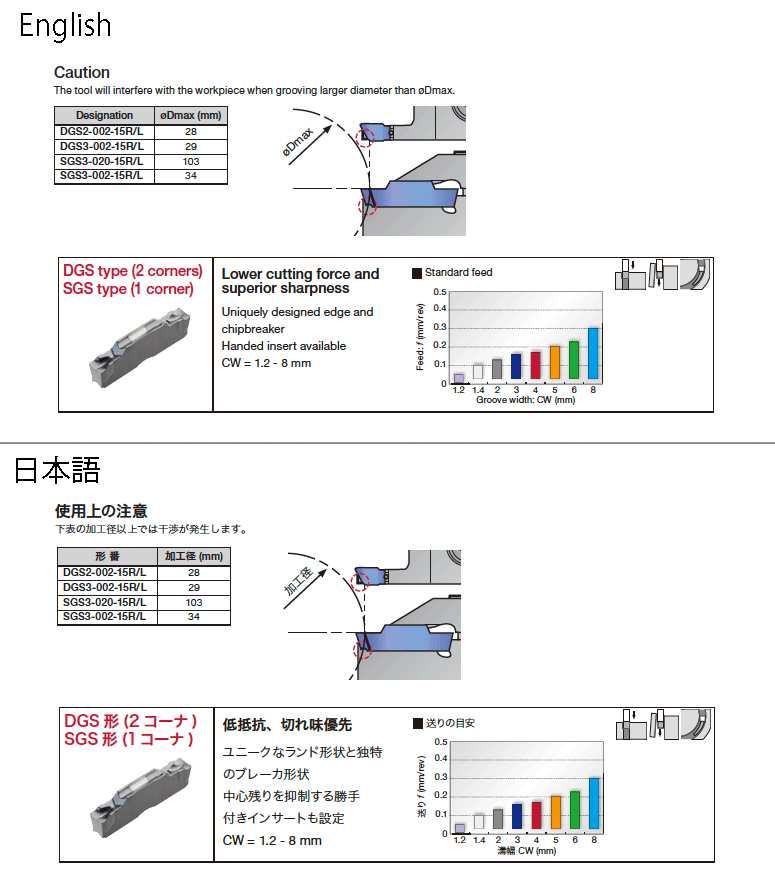

Remarks	For "Max workpiece diameter" and "Standard cutting conditions", click on "More Info".	BrandName	Tungaloy
COO	JAPAN

Weight per item

0.0000

Name

Parting Off Indexable Inserts

FamilyName

DGS

BrandName

Tungaloy
