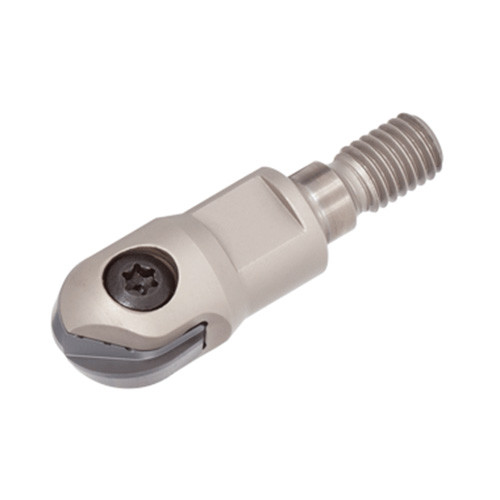

HBFM10M06
Indexable endmills with TungFlex threaded adaptation for high precision finish. Each tool can carry various milling insert geometries.

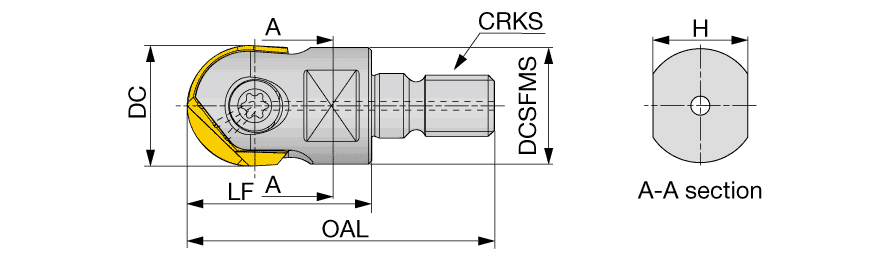

| Cutting Diameter (DC/DCX) | 10 mm | Functional Length (LF) | 20 mm |
| Cutting Diameter (DC) | 10 mm | Tool Type | Ball nose endmills |
| Cutting Item Count (CICT) | 1 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 5 mm | Body Material | Steel |
| Overall Length (OAL) | 34.5 mm | Connection Retention Knob Thread Size (CRKS) | M6 |
| Application | | Profile Milling | | Shank Height (H) | 7 mm |
| Connection Diameter Machine Side (DCONMS) | 9.7 mm | Cutting Diameter Maximum (DCX) | 10 mm |
| Master Insert Identification (MIID) | ZFBM100R00-MJ | Unit | M |
Product Features
| Family Description | Indexable endmills with TungFlex threaded adaptation for high precision finish. Each tool can carry various milling insert geometries. | FamilyName | HBFM-M |
| Remarks | An overall length (OAL) differs based on each insert geometry. | BrandName | Tungaloy |
| COO | SOUTH KOREA |
Shipping Info
Weight per item
0.1020
Name
Indexable End Mills
FamilyName
HBFM-M
BrandName
Tungaloy
