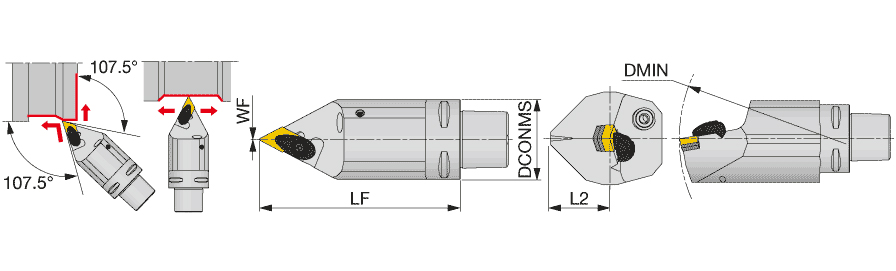

| Overall Length (OAL) | 178 mm | Master Insert Identification (MIID) | DNMG150408 |
| Functional Length (LF) | 140 mm | Application | | Face contact interface | For 55deg Rhombic insert | |
| Functional Width (WF) | 0 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Tool Type | Tapered Shank Turning Tools |
| Minimum Bore Diameter (DMIN) | 190 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Neutral | Unit | M |
Product Features

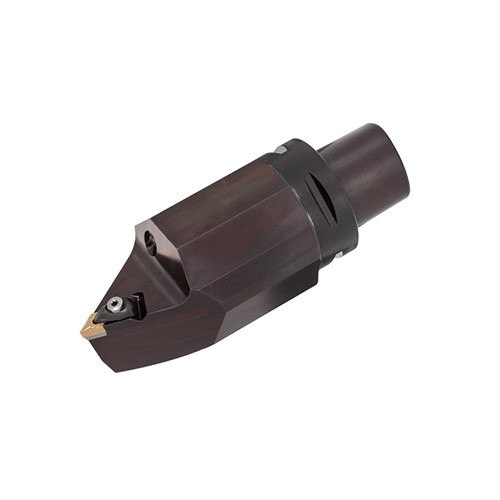

| Family Description | TungCap Double-clamp toolholder with 62.5 deg approach angle, for negative 55 deg rhombic inserts | FamilyName | C-ADNNN |
| Remarks | The last character of designation is "N": Applicable for 7 MPa coolant. The last character of designation isn't "N": Applicable for 3 MPa coolant. Option: ASD423 (shim for DN**1506...) | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
3.1600
Name
General Indexable Turning Tools
FamilyName
C-ADNNN
BrandName
Tungaloy
