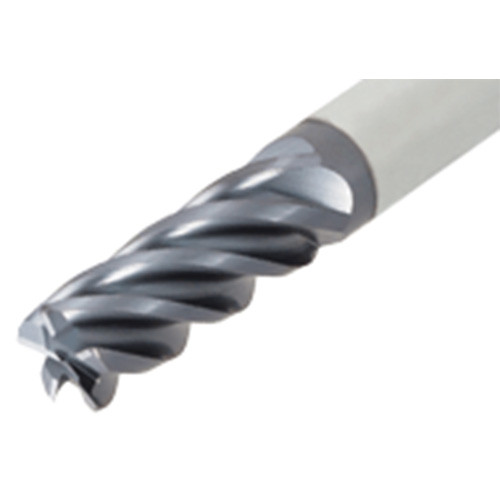

TEC160E5L-40C16CF-100 AH725
5 flute endmill, 38 deg helix angle, variable pitch

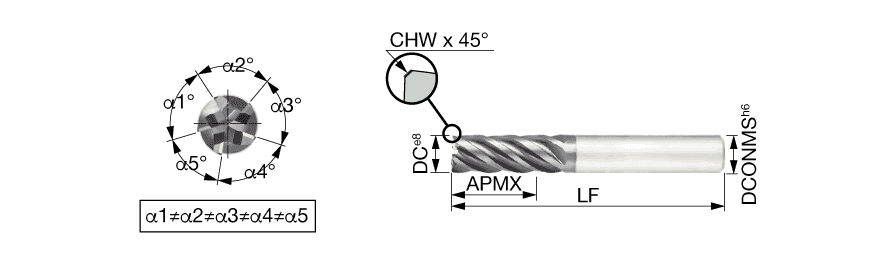

| Cutting Diameter (DC) | 16 mm | Application | | Shoulder Milling | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Corner Chamfer Width (CHW) | 0.5 mm |
| Depth of Cut Maximum (APMX) | 40 mm | Grade | AH725 |
| Overall Length (OAL) | 100 mm | Tool Type | Solid carbide center cutting endmills 90 |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.12 mm/tooth |
| Coating | TiAlN | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Flute Count (NOF) | 5 | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Chamfer | Unit | M |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | 5 flute endmill, 38 deg helix angle, variable pitch | FamilyName | TEC-E5L-CF |
| COO | ISRAEL | BrandName | Tungaloy |
Shipping Info
Weight per item
0.2540
Name
Square & Corner Radius End Mills
FamilyName
TEC-E5L-CF
BrandName
Tungaloy
