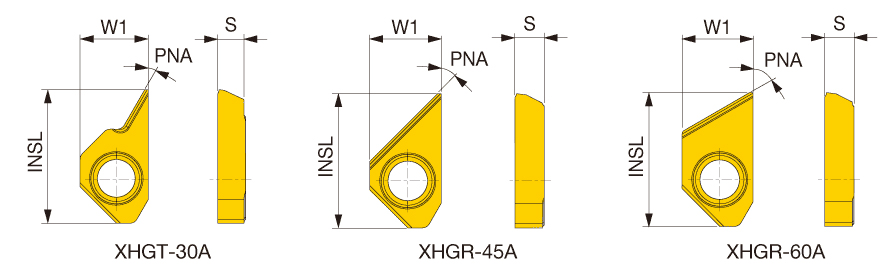

| Insert Width (W1) | 8.5 mm | Applicable Material | | Steel | Stainless Steel | |
| Insert Thickness (S) | 3.3 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 30 Degrees | Tool Type | Indexable drilling inserts |
| Coating | TiCNO | Measurement Type | Metric |
| Grade | GH730 | Body Material | Carbide |
| Application | | Chamfering | | Unit | M |
Product Features

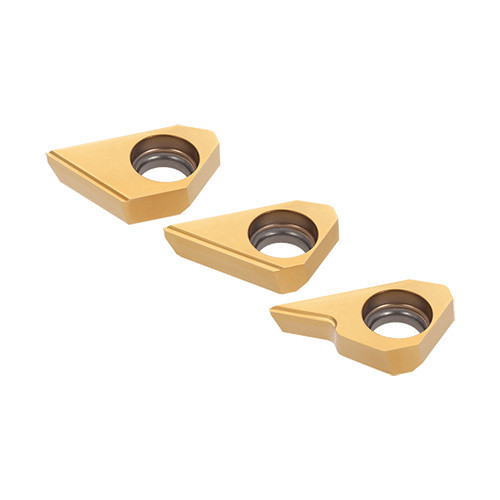

| Family Description | DrillMeister XHGT/R Inserts for chamfering adopter | COO | JAPAN |
| Remarks | Please reduce the feed rate to half when chamfering over 60% of maximum width of chamfer |
Shipping Info
Weight per item
0.0180
