FNTR-02D-XX.XX (-21.99

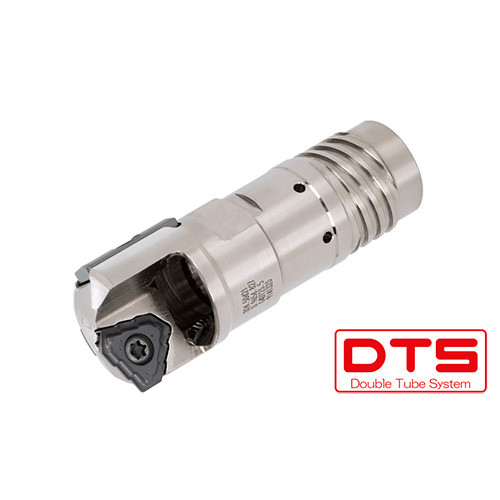

Indexable head with external 4-start thread for double tube system (DTS)
| Application | | BTA system | | Cutting Diameter Maximum (DCX) | 21.99 mm |
| Connection Diameter Machine Side (DCONMS) | 19.5 mm | Measurement Type | Metric |
| Functional Length (LF) | 63.5 mm | Body Material | Steel |
| Overall Length (OAL) | 66.7 mm | Unit | M |
| Cutting Diameter Minimum (DCN) | 21.81 mm |
Product Features
| Family Description | Indexable head with external 4-start thread for double tube system (DTS) | COO | JAPAN |
| Remarks | These products are made to order on request. |
Shipping Info
Weight per item
0.0000
