| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.5 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 5 mm |
| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Cutting Edge Length (L) | 16.5 mm | Max. Turning Feed (ft(max)) | 0.5 mm/rev |
| Insert Thickness (S) | 3.97 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 9.525 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | AL |
| Coating | Uncoated | Measurement Type | Metric |
| Grade | KS05F | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 4.4 mm | Cutting Edge Effective Length (LE) | 15.11 mm |
| Tool Type | Turn Inserts AL, HTA Geometric | Unit | M |
Product Features

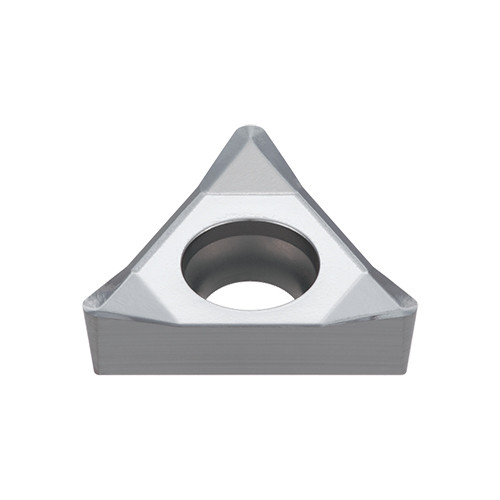

| Family Description | Positive 7deg relief ang., G class, triangular insert, for aluminum cutting | FamilyName | TCGT-AL |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0520
Name
Turning Indexable Inserts
FamilyName
TCGT-AL
BrandName
Tungaloy
