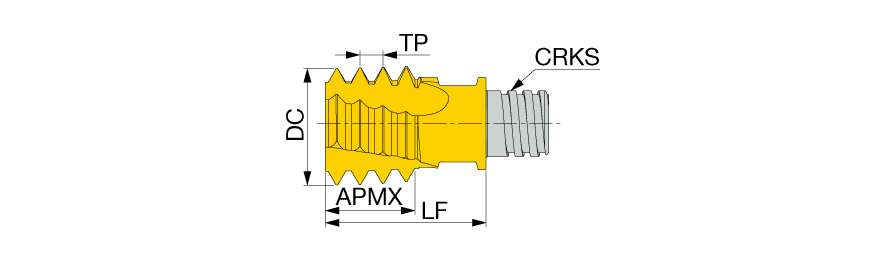

VMT100L06UN20-4S05 AH725
| Threads per Inch (TPI) | 20 | Tool Type | Solid carbide thread mills |
| Depth of Cut Maximum (APMX) | 5.1 mm | Threads per Inch Maximum (TPIX) | 20 |
| Connection Thread Nominal Size Machine Side (THSZMS) | S05 | Threads per Inch Minimum (TPIN) | 20 |
| Cutting Diameter (DC) | 10 mm | Thread Pitch Minimum (TPN) | 1.27 mm |
| Flute Count (NOF) | 4 | Thread Pitch Maximum (TPX) | 1.27 mm |
| Coating | TiAlN | Functional Length (LF) | 12.8 mm |
| Grade | AH725 | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Overall Length (OAL) | 12.8 mm |
| Application | | Int. Thread Milling | | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | M |
Product Features
| Family Description | Carbide milling heads with a threaded connection for internal UN thread profile. | COO | ISRAEL |
| Remarks | Torque: Recommended torque (Nm) for clamping Wrench sold separately. |
Shipping Info
Weight per item
0.0330
