TEB003A2-003/01C4H-45 AH3005

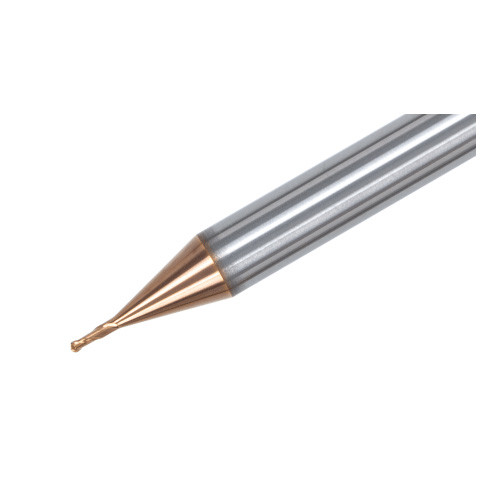

2 flute ball nose endmill, 30 deg helix angle, long neck Type,for hardened steel

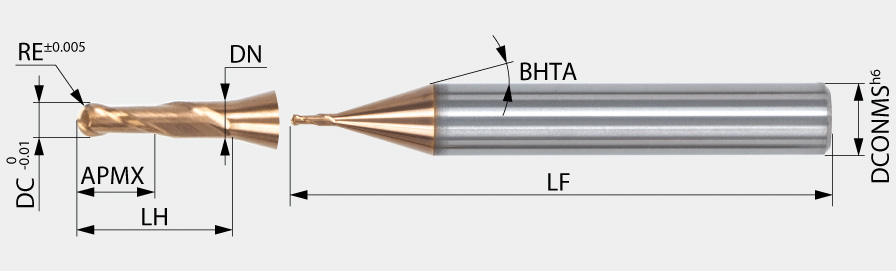

| Cutting Diameter (DC) | 0.3 mm | Application | | Profile Milling | |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Corner Radius (RE) | 0.15 mm |
| Depth of Cut Maximum (APMX) | 0.3 mm | Neck Diameter (DN) | 0.27 mm |
| Overall Length (OAL) | 45 mm | Grade | AH3005 |
| Flute Count (NOF) | 2 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Round | Unit | M |
Product Features
| Family Description | 2 flute ball nose endmill, 30 deg helix angle, long neck Type,for hardened steel | FamilyName | TEB-A2H |
| COO | SOUTH KOREA | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Ballnose End Mills
FamilyName
TEB-A2H
BrandName
Tungaloy
